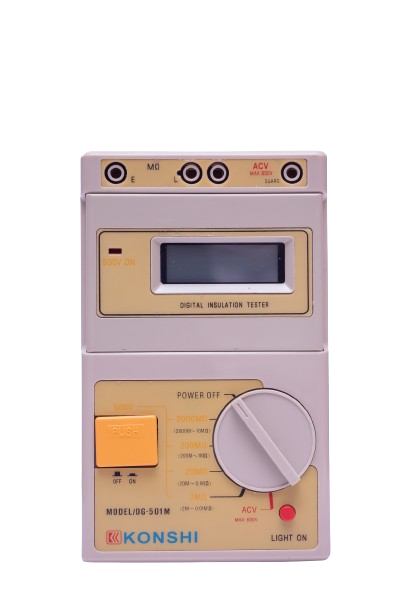

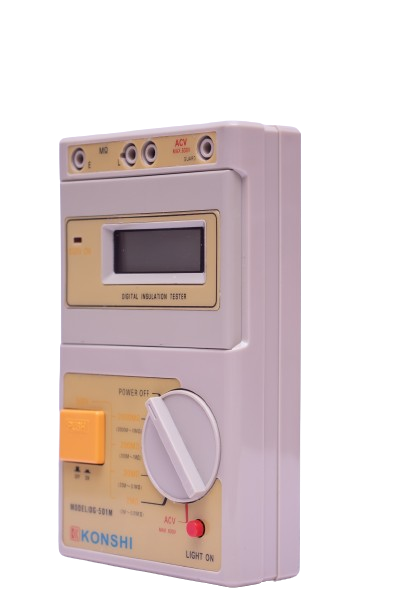

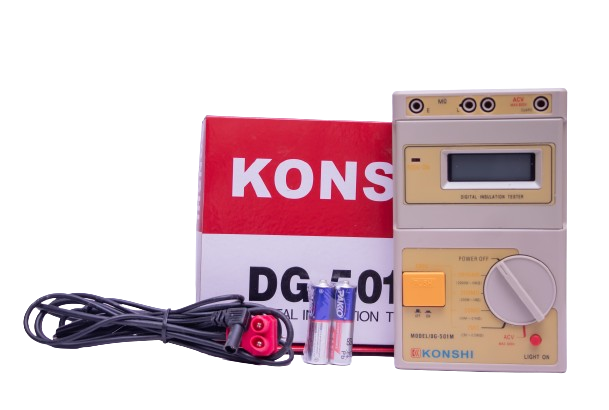

The Konshi DG-501M Digital Insulation Tester is a high-quality, reliable insulation resistance tester designed to perform precise insulation resistance measurements in a wide range of electrical systems. Whether you’re testing electrical wiring, motor windings, transformers, or cables, the DG-501M offers accurate testing for insulation quality, ensuring the safety and efficiency of electrical systems.
Key Features:
✔ Insulation Resistance Measurement – Measures insulation resistance up to 2000 MΩ, ensuring proper insulation of electrical systems and components.
✔ Test Voltages: 250V, 500V, and 1000V – Provides three selectable test voltage settings to meet various insulation testing requirements.
✔ Digital Display – Clear and easy-to-read LCD display that shows both measurement values and test voltage, ensuring accurate and reliable readings.
✔ Wide Application – Ideal for testing cables, switchgear, motors, transformers, and other electrical equipment in both industrial and residential applications.
✔ Auto Range Function – Automatically adjusts the measurement range for enhanced accuracy and ease of use.
✔ Safety Features – Built-in overload protection and battery status indicator for safe and efficient testing.
✔ Data Hold Function – Freezes the current measurement, making it easier to record or document results during testing.
✔ Low Battery Indicator – Alerts the user when battery power is running low, ensuring reliable performance during critical tests.
✔ Test Current Limiting – Ensures safe insulation resistance testing by limiting the test current, preventing excessive current flow during tests.
Technical Specifications:
🔹 Insulation Resistance Measurement: 0.01 MΩ – 2000 MΩ
🔹 Test Voltage: 250V, 500V, 1000V
🔹 Display: Digital LCD
🔹 Test Current: ≤ 2mA
🔹 Measurement Accuracy: ±(5% of reading + 5 digits)
🔹 Battery Type: 6 × 1.5V AA batteries
🔹 Overload Protection: Yes
🔹 Auto Range: Yes
🔹 Data Hold: Yes
🔹 Low Battery Indicator: Yes
Why Choose the Konshi DG-501M Digital Insulation Tester?
✅ Precise Insulation Testing: Ensures accurate and reliable measurements of insulation resistance, helping detect faulty insulation early.
✅ Safety-First Design: Built-in safety features such as overload protection and test current limiting prevent unsafe testing conditions.
✅ Versatile Testing Options: Multiple test voltages make it suitable for a wide range of electrical equipment and systems.
✅ User-Friendly Features: Digital display, auto range, and data hold function make testing easy and efficient for both experienced professionals and newcomers.
Order the Konshi DG-501M Digital Insulation Tester today to ensure the safety, performance, and longevity of your electrical systems with accurate and reliable insulation testing!
