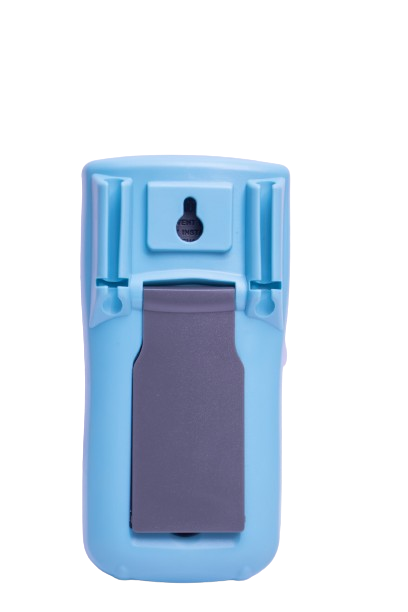

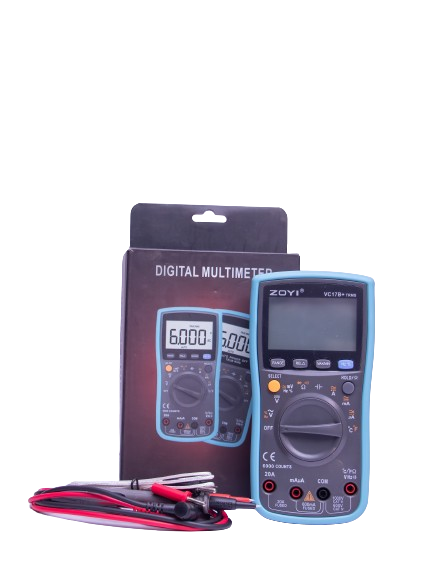

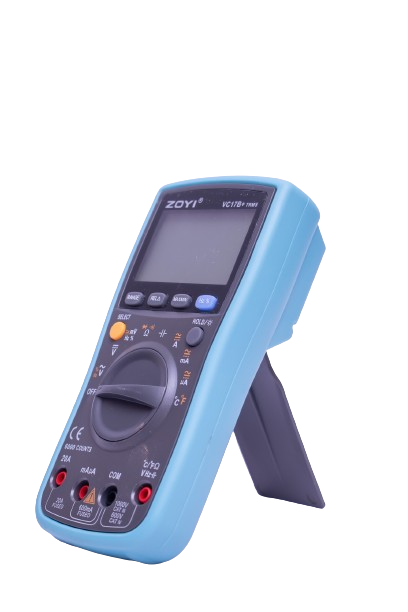

The Zoyi VC17B+ Digital Multimeter is a compact and reliable measuring instrument designed for both professionals and DIY enthusiasts. It offers True RMS (TRMS) measurement, ensuring accurate readings even for complex AC waveforms. With a large LCD display, auto-ranging capabilities, and multiple testing functions, it is an essential tool for electrical and electronic troubleshooting.

Key Features:

✅ True RMS (TRMS) Measurement – Provides accurate AC voltage and current readings, even for non-sinusoidal waveforms.
✅ AC/DC Voltage & Current Measurement – Measures a wide range of voltages and currents with precision.
✅ Auto-Ranging – Automatically selects the best range for measurement accuracy.
✅ Resistance & Capacitance Measurement – Useful for testing resistors, capacitors, and circuit continuity.
✅ Frequency & Duty Cycle Measurement – Essential for analyzing frequency-dependent circuits.
✅ NCV (Non-Contact Voltage Detection) – Detects live wires without direct contact for added safety.
✅ Diode & Continuity Testing – Includes a buzzer for quick troubleshooting.
✅ Data Hold & Backlight Display – Freezes measurements and ensures visibility in low-light conditions.
✅ Auto Power-Off – Saves battery when the device is idle.
✅ Overload Protection – Prevents damage from excessive input voltage or current.
✅ Compact & Durable Design – Lightweight and easy to carry, making it perfect for fieldwork.

Technical Specifications:

DC Voltage: 0.1mV – 600V
AC Voltage: 0.1mV – 600V (TRMS)
DC Current: 10μA – 10A
AC Current: 10μA – 10A
Resistance: 0.1Ω – 60MΩ
Capacitance: 10pF – 100mF
Frequency: 10Hz – 10MHz
Duty Cycle: 0.1% – 99.9%
Power Supply: 2 × AAA batteries
Display Count: 6000 counts
Dimensions: Compact and portable for easy use.

Applications:

🔹 Electrical maintenance and troubleshooting
🔹 Household and industrial electrical testing
🔹 Automotive diagnostics
🔹 Electronics repair and circuit analysis
🔹 DIY and educational projects

The Zoyi VC17B+ Digital Multimeter is a feature-packed, accurate, and easy-to-use tool, making it a great choice for electricians, engineers, and hobbyists who need a versatile and reliable multimeter for daily use.
